CLARE ribbon mixer has revolutionized the traditional process of mixing conditions, make the mixture of powder and powder, powder and liquid towards the development of high-speed, efficient, easy to clean and operate, pollution-free, which marks a significant progress in modern technology. It is widely used in medicine, food, veterinary drugs, lecithin soy protein coating, paper making, chemicals, feed, flavor, spices, CPE plastic particles and other industries.Its unique structure destines the below distinctive features:
◆Wide application. It is availble for mixture of solid-solid (powder- powder),solid-liquid (powder-liquid) and liquid-liquid.
◆High mixing uniformity. It can mix 1:10000 times materials uniformly, especially for a larger proportion of the material.
◆High mixing speed and high efficiency. Its Efficiency is 6-10 times or more than any other mixer.
◆Fast discharging and convenience.It usually takes 2 to 5 minutes to discharge a batch of material.
◆Gentle mixing process.It doesn’t damage the raw material’s state basicly.
◆No pollution. As an intergral device of the mixer, it is safe and reliable.All of the edges’weld are smooth,so easy to be cleaned; lubricating parts of the mixer are out of the barrel body, so the drop of oil or debris won’t seep into the material. The mixer can operate in sealed environment,make the material isolated from air.
◆Low energy consumption and high loading coefficient.
◆Low demand on the plant.The equipment is horizontal, and various forms of drives and discharge locations can be selected discretionarily, so the mixer is free from plant’s height and floor space.
◆Smooth and reliable operation of equipment.It has characteristics of less wearing parts, long service life, easy maintenance and simple operation.
mix’s woking video tape
ypical powder - liquid mixed flow chart
Ribbon mixer structure
◆Engine cover - according to user requirements and process conditions, can be designed to flushcover or arched cover. The cover can be designed to open in a whole set or several pieces, manual or pneumatic. On the top of the cover can be opened kinds of nozzle aacording to needs.
◆“U " shaped or barrel-shaped trough for selection.
◆Mixer / mixershaft - three types are available.
Mixer / mixershaft - three types are available.
1、Continuous spiral ribbon - the most common design can achieve uniform mixing effect quickly. The external spiral riboon move the material to the center and the internal spiral ribbon move the material onto the end of plate, the two models move radiately.
2、Non-continuous spiral ribbon - to provide the same movement as continuous spiral ribbon, only with a very small power, is widely used in the mixture of high-density materials.
3、Blades - when they are applied to the imcomplete gap-type operation, this is an excellent choice, even under the circumstance of meeting minimum correspondence can mix effectively .
both ends of the stuffing box’s seal
Valve
A variety of valves are available, embedded valve, gate valve, butterfly valve, ball valve, pully valve, electric, pneumatic, manual
Drive section:
Motor can be an ordinary motor, explosion-proof motor, dual speed motor, QABP. It can be drived by chain or belt and its connection can adopt direct-connection for motor, reducer and ribbon mixer, or a cycloidal-pin wheel connection.
Ribbon mixer’s menu options
◆Addition of liquid - spray system
◆Chopper- high-speed chopper can make the clot or agglomeration from the certain material’s mixing process disappeared. A device can be installed one or two sets of chopper, which can be equipped on cover or both sides of the barrel’s bleeder valve.
◆Scraper device - adapting barrel’s ends and outside spiral ribbon with scraper to reduce the mixing shadow zone.
◆Interlayer - interlayer can be heated by conducting oil, hot water or steam, but the user must provide the media, pressure and temperature parameters.
◆Vacuum operation - equipment can be designed of vacuum operation or vacuum suction.
◆Load start protection – fluid coupling
◆Electronic control box - usually do not provide control box, unless the user needst.
◆Speed: single speed, double speed and frequency control of motoe speed and stepless speed regulating variable speed are availble.
◆Material: carbon steel, 304SUS, 316L stainless steel are availble.

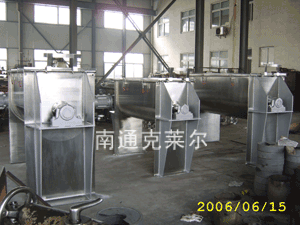

device being assembling

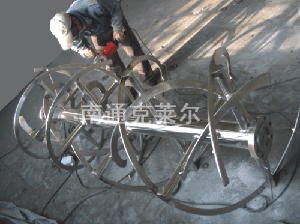

spiral ribbon being processed
Test equipment with raw materials before sending
Equipment debugging
three devices ready to send
Pneumatic opening device,
equipment with control box
spiral ribbon
Equipment Photoes
Equipment Photoes
spiral ribbon scene photoes
spiral ribbon scene photoes
cylinder being polishing
president from M & E Australia is visiting the factory
president from M & E Australia is visiting the factory
Molde No.
halnding ability
power
rotate speed of principal axis
three-dimensional size
weight
length
width
height
RB-1/4
0.056
0.55
80
950
400
800
125
RB-1
0.028
1.1
60
100
400
850
250
RB-5
0.142
2.2
60
1700
1000
888
450
RB-10
0.26
5.5
60
2000
1000
1100
600
RB-18
0.42
7.5
55
2550
1000
1150
1000
RB-25
0.60
11
45
2550
1290
1500
1400
RB-36
0.8
15
45
2900
1350
1770
1800
RB-52
1.1
18.5
40
3150
1550
1800
2200
RB-62.5
1.4
18.5
35
3500
1550
1800
2900
RB-71
1.6
18.5
35
3600
1550
1880
3200
RB-100
2.1
22
25
4400
1800
1800
3500
RB-120
2.6
30
25
4400
1800
1800
3600
RB-150
3.3
37
25
4400
1800
1900
4100
RB-180
3.85
37
20
5000
2300
2500
5000
RB-215
4.6
45
20
5200
2300
2300
7300
RB-270
6
45
20
5300
2500
2800
8100
RB-325
7
55
20
5300
2600
2900
12000
RB-385
8.4
75
15
5400
2900
3000
14000
RB-515
11
90
15
7130
3230
2500
23000
Notes: 1 The above data is for reference only, the real product is subject to actual structure and parameters.
