Portable blender product summarize
This is a mobile blender fixed in the top of agitator tank or simple holder which reduce the gear speed.
Mixer shaft will deviate the middle position of the slot during working, and it is on an angle of vertical direction. This angel can be adjusted and easy to clamp. It won’t swirling even if there is no baffle plate. And it has high mixing efficiency.
|
●permanent fixed in the top of the container
●select different power according to container size
●length and diameter of blender is according to length and diameter of container
●single-deck or double-deck blender
●can change different blenders |
| |
|
|
 |
|
Blender working video |
|
|

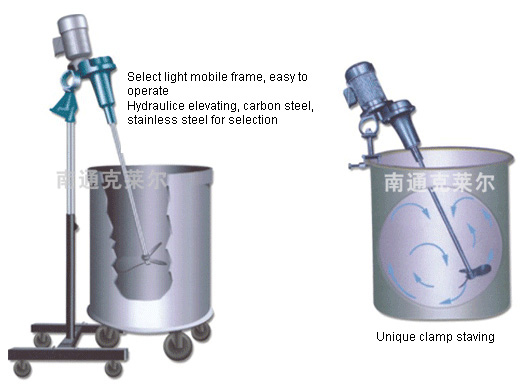

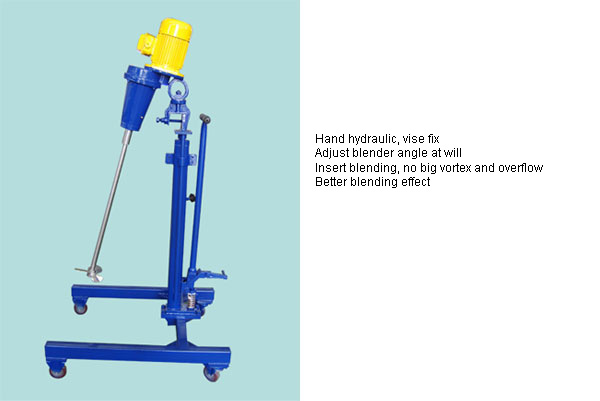

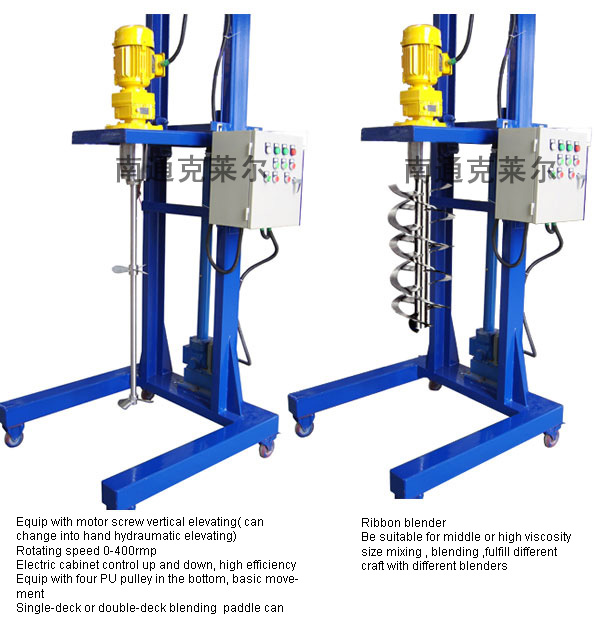

Scene pictures |
|
|
Characteristic of blender
◇various power source for selection,including closed electrical machine, explosion-proof electric machine and other special design
◇hard lead casting box
◇heart treated high quality gear
◇oil lubrication used in the gear, with oil sea which prevents leakage polluted materials
◇superstrong seal and lubricant bearing
◇elastomer material oil seal

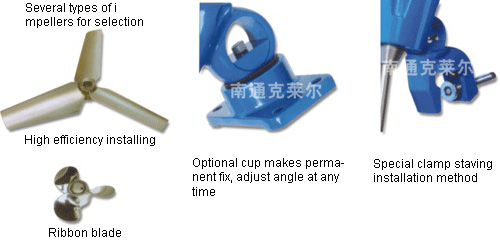

◇mixer shaft and impel
|
| Model meaning |
 |
Characteristic
Small volume, light weight, easy to install and dismantle, angle of inclination can be adjusted to optional position within in specified limits. High mixing efficiency, flange plate electrical machine, moderate gear, stable revolve, low noise, long lifetime. |
Applicability
Food industry—cream, chocolate, milk, soy sauce, capsicol, mayonnaise,juice etc
Coating industry—ink, paint
Chemical industry—cosmetic, emulsion etc
Dye industry—dye, titanium oxide, mucilage glue
Drug industry—drug, pesticide, medicine
Brewing industry—millet wine, whisky, unstrained soy sauce, beer
Oil industry—crude, gasoline, pitch, carbinol, benzene, methylbenzene
Others—apply for dissolve, mix, heat transfer, disperse, absorb, avoiding sediment, reaction, dilution, emulsify, suspension and crystallize area |
Technical parameters and structure showing
 |
| |
| Model |
rotating speed
(r/min) |
power
(KW) |
impeller diameter Dj
(mm) |
handling ability
(L) |
| PM-360-0.37 |
360 |
0.37 |
150 |
200 |
| PM-240-0.37 |
240 |
0.37 |
200 |
300 |
| PM-360-0.55 |
360 |
0.55 |
200 |
300 |
| PM-240-0.37 |
240 |
0.55 |
250 |
500 |
| PM-360-0.75 |
360 |
0.75 |
250 |
500 |
| PM-240-0.75 |
240 |
0.75 |
300 |
800 |
| PM-360-1.1 |
360 |
1.1 |
250 |
800 |
| PM-240-1.1 |
240 |
1.1 |
300 |
1000 |
| PM-360-1.5 |
360 |
1.5 |
300 |
1000 |
| PM-240-1.5 |
240 |
1.5 |
400 |
1500 |
|

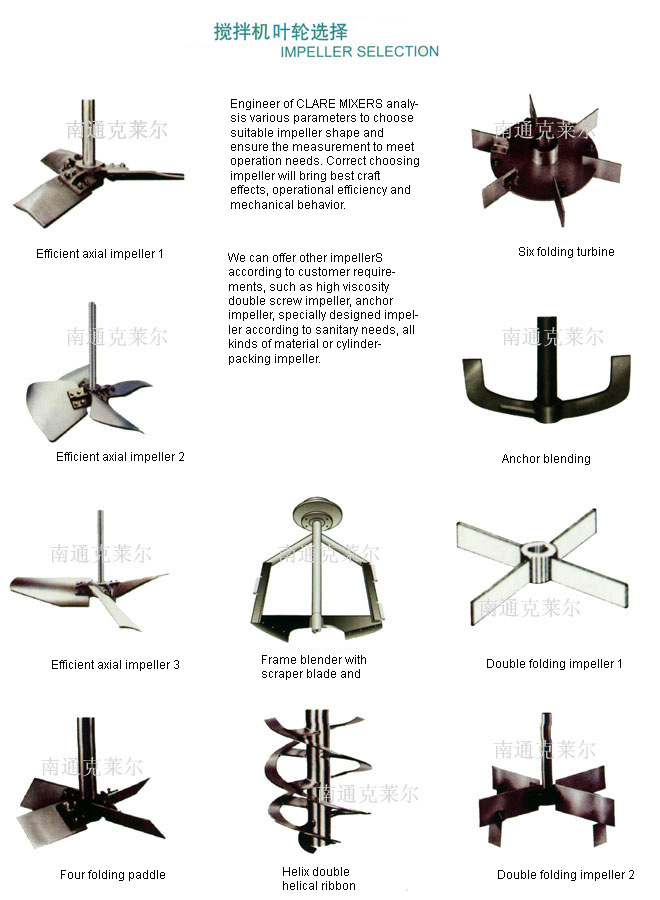

| 搅拌机叶轮选择 |
 |
| |
|
|
|
