Product Name: The current decentralized mixer

Pro files

Principle：
High-speed rotation of the rotor driven cavity flow under the effect of the diversion ,will have a strong vertical circulation of liquid. Liquid in container will start the whole cycle, to achieve macro-mixing. On the other hand, high-speed rotation of the rotor can produce micro-mixing necessary to achieve a certain shear turbulence, which dealt with through the micro-liquid mixed with the overall flow of the loop is distributed to every corner of the container. All liquid containers can be thoroughly mixed dispersion, this mixed blender is totally different with traditional one.

Let us know about the effective mixed
When we talk about mixing, firstly we should distinguish micro-and macro-hybrid mixed.
Micromixing can be seen as the minimum size of a small volume of materials mixed, and fully mixed to disperse the results.
Macro-mixing can be regarded as materials in container the overall mixture.
The optimal mixture are both macro-mixing, and micro mixing. Therefore, if a device is mixed but can not do macro-micro-mixing, it can not be regarded as an optimized device, and vice versa.

Different functional working heads

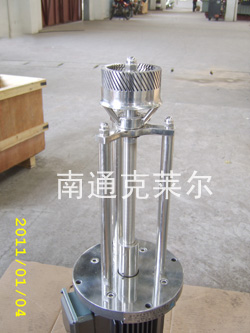

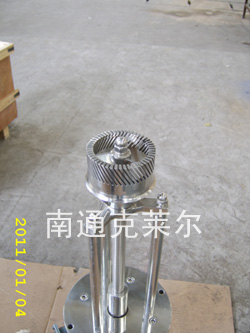

	Skewed hybrid dispersed Mixing, dispersion, shearing, homogenization Solution to accelerate the reaction
Merit The overall flow of the vertical dispersion mixing Liquid without the vortex flow Bottom of the container will not produce precipitation Produce high shear stress, can reduce the particle size, speed response Small amount of air infiltration Efficient preparation of the mixed emulsion to make it easier for suspension

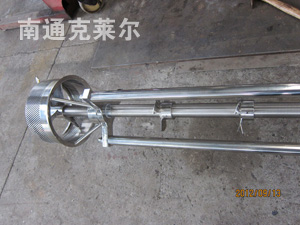

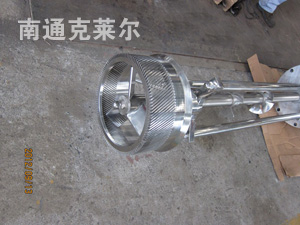

	Mixed distributed without slot Mixing, dispersion, dissolution Suspension, speed up the reaction
Merit The overall flow of the vertical dispersion mixing Liquid without the vortex flow Bottom of the container will not produce precipitation Produce high shear stress, can reduce the particle size Small amount of air infiltration Efficient preparation of the mixed emulsion to make it easier for suspension

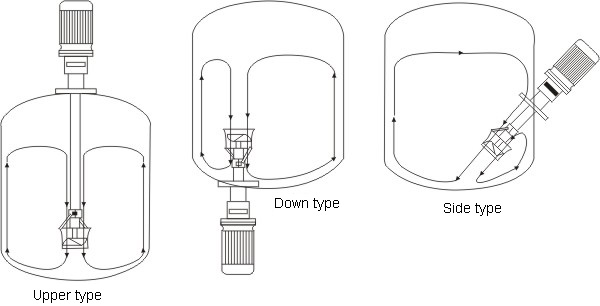

Install form

Install form

Jetstream hybrid dispersion machine Selection Tables ◆Motor and flexible shaft connection ◆Standard flange base ◆Fixed / removable rotor ◆Operating temperature≤180℃ ◆Pressure design, without seal ◆Special mechanical seal design, suitable for vacuum and pressure conditions

Normal pressure type

Model	Power factor (KW)	Rotate speed(rpm)	A	B	C	D	E	F	G	Handle ability（L）
JMa-1.5	1.5	2900	100		430		200	705		10～70
JMa-2.2	2.2	2900	110	160	650	215	265	1196	8×Φ16	50～150
JMa-4	4	2900	130	200	750	255	290	1395	8×Φ16	100～400
JMa-7.5	7.5	2900	160	240	833	300	350	1580	8×Φ16	200～1000
JMa-11	11	2900	170	240	740	300	350	1769	8×Φ16	300～1400
JMa-18.5	18.5	1470	260	280	1190	360	415	2200	8×Φ20	500～1800
JMa-22	22	1470	280	300	1200	360	415	2250	8×Φ20	800～2500
JMa-30	30	1470	300	340	1355	400	450	2525	8×Φ20	1000～3500
JMa-37	37	1470	320	340	1395	400	450	2585	8×Φ20	1500～6000

Pressure type

Model	Power factor (KW)	Rotate speed(rpm)	A	B	C	D	E	F	G	Handle ability（L）
JMa-1.5	1.5	2900	100	120	430		200	705		10～70
JMa-2.2	2.2	2900	110	140	740	215	265	1286	8×Φ16	50～150
JMa-4	4	2900	130	160	863	255	290	1506	8×Φ16	100～400
JMa-7.5	7.5	2900	160	180	1083	300	350	1830	8×Φ16	200～1000
JMa-11	11	2900	170	210	1110	300	350	2039	8×Φ16	300～1400
JMa-18.5	18.5	1470	260	300	1520	360	415	2530	8×Φ20	500～1800
JMa-22	22	1470	280	320	1540	360	415	2590	8×Φ20	800～2500
JMa-30	30	1470	300	340	1715	400	450	2885	8×Φ20	1000～3500
JMa-37	37	1470	320	360	1775	400	450	2965	8×Φ20	1500～6000

Note：
*The surface upper limit is the media as the "water" while the measured data
*If high viscosity or consistency medium , we advice to usein conjunction with pipelines and high-shear dispersing emulsifier type
*If high-temperature, high pressure, flammable, explosive, corrosive and other conditions, you must provide accurate and clear parameters to be customized selection.
*Data in this table are subject to change without notice.The above is for referance only,the correct parameter is subject to the real object.
