Product Name: In-line scattered high shear emulsifying machine (high)

Pro files

An overview of the

Each time the user process requests to cycle the material or installed on the pipeline for material crushing, shearing, homogeneous, emulsification, in-line dispersing emulsification machine (emulsion pump) is often the best choice.

In-line scattered high shear emulsifying machine cavity in the body of the narrow space with 1-3 groups closely match/rotor, the rotor in motor driven by high-speed rotation, will produce strong axial suction material suction cavity, in the shortest time is dispersed, shear, emulsifying process for the material, narrow particle size distribution was also significantly, the precision can be obtained from the long-term stability of the product.

In-line scattered high shear emulsifying machine appearance similar to pump, in actual use process, does have the effect of pump, has a head and suction force, in the process sometimes can no longer need the auxiliary pump.

According to user different process requirements, CLARE has launched single-stage single, single stage multi-level, multi-stage multilayer stator structure form in-line scattered high shear emulsifying machine for the user to choose from, meet different needs.

Pipeline High Shear Dispersing Emulsifier (emulsion pump) Benefits
◆Large capacity, suitable for industrial, high-volume continuous production line
◆Materials tend to be more fine, uniform and high
◆Low noise, low power consumption
◆No dead ends, the material dispersed 100% by shearing
◆Simple operation, easy maintenance

Typical process

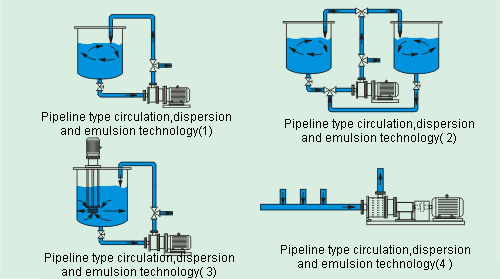

Pipeline of high-shear emulsifier (emulsifying pump) for batch processes and online circulation dispersed emulsion dispersed emulsion continuous process, the typical process as shown in picture.

Single pipeline working first series of high-shear dispersing emulsifier (emulsifying pump, high shear emulsification pump)

	Single pipeline working first series of high-shear dispersing emulsifier (emulsifying pump, high shear emulsification pump)

The working chamber with a group of stator and rotor, drive shaft and motor shaft cantilever Direct. Suitable for medium and small batch production and recycling processes, recommendations and gap-type high-shear dispersing emulsifier used simultaneously, better results

The working chamber with a group of stator and rotor, drive shaft cantilever, flexible coupling to the spindle motor and bearings inside the joint, improve the quality of operation shaft.
Suitable for medium and small batch production and recycling processes, recommendations and gap-type high-shear dispersing emulsifier used simultaneously, better results.

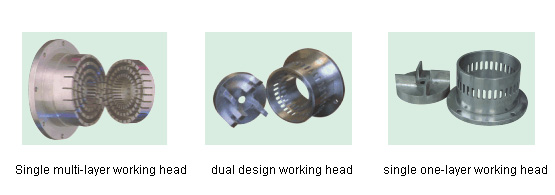

Several working head for options
均质泵均质乳化泵乳化均质泵高剪切乳化泵

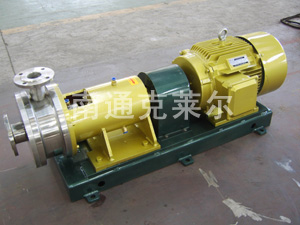

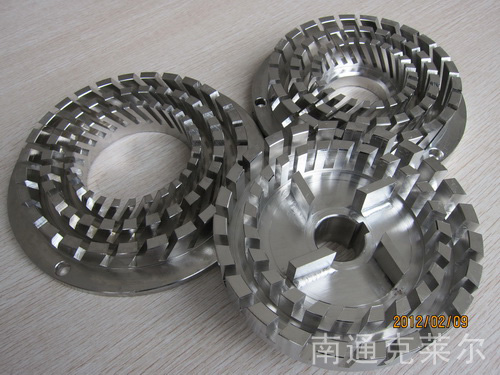

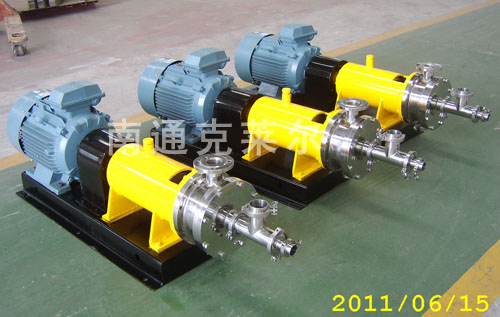

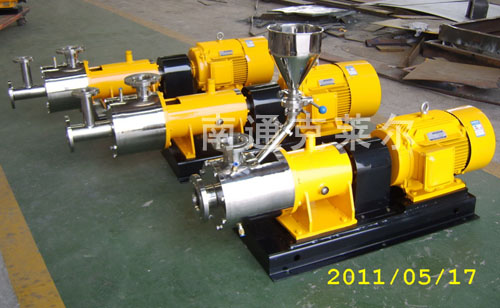

Field devices	the opened inside chamber photo

DE-400-1 single group working head( data tables and figure)

400 series	401	405	410	425	430	450
Pawer factor（kilowatt）	1.1	4	7.5	18.5	22	37
Rotate speed（turn/min）	2900	2900	2900	2900	1470	980
Diameter of imported materials A（millimeter）	38	50	70	70	100	125
Diameter of exported materials B（millimeter）	25	32	50	70	80	100
Total length C（millimeter）	572	735	836	1570	1030	1234
Total width D（millimeter）	270	363	380	460	1020	1160
Total height E（millimeter）	355	382	445	530	556	675
Base mounting dimensions F（millimeter）	340	370	420	760	970	1090
Base mounting dimensions G（millimeter）	200	295	320	370	380	430
Mounting bolt n-H（millimeter）	4-M12	4-M12	4-M14	4-M16	4-M16	4-M16
Water treatment capacity（Liters）	250	680	908	1325	2271	3444

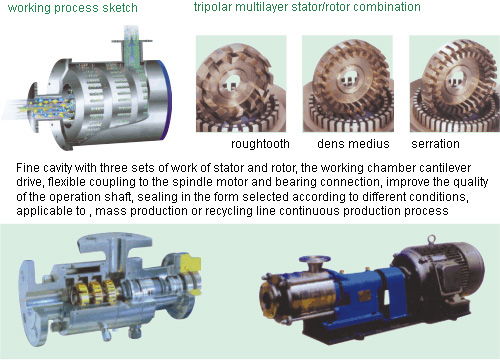

	Three lines of high shear dispersing emulsifier (emulsifying pump, high shear emulsification pump)

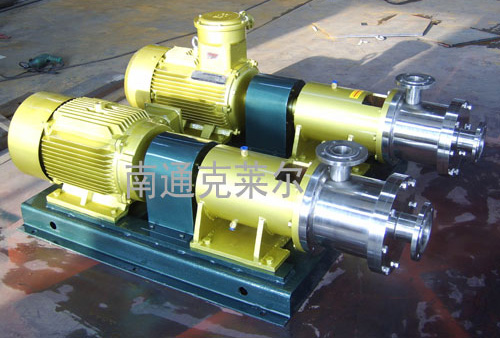

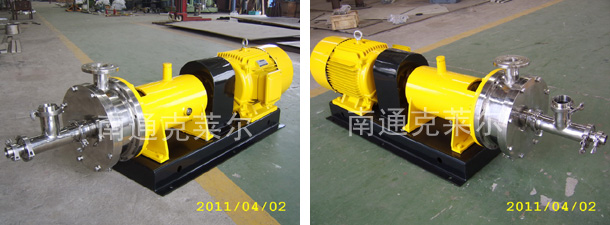

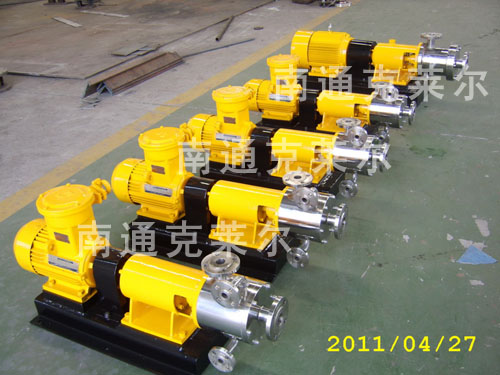

现场设备照片

	Usually increase a few slices of blades on the rotor,it will enhance the suction and materials mobility, and increase the material the number of cut,emulsion.

DE400-1/3 Single multi-layer or multi-storey or three work tables and said first series of Figure

model	Power factor (KW)	Rotate speed (rpm)	A	B	C	D	E	F	G	H	I	J	K	Flow range	Out pressure
DE400-1/3-4	4	2955	1690	210	340	295	60	1576	1376	550	470	100	80	5-50	≤0.2
DE400-1/3-7.5	7.5	2920	1213	218	232	155	50	1120	1010	300	240	50	40	0.3-8	≤0.2
DE400-1/3-11	11	2930	1365	242	293	180	50	1310	1100	350	230	80	65	0.5-12	≤0.15
DE400-1/3-15	15	2940	1500	260	260	200	50	1420	1280	422	322	80	65	0.5-20	≤0.2
DE400-1/3-22	22	2940	1605	290	260	206	50	1540	1340	422	322	80	65	1-30	≤0.2
DE400-1/3-37	37	2955	1870	305	310	246	60	1720	1560	550	470	100	80	3-50	≤0.2
DE400-1/3-55	55	2960	2135	330	360	276	60	1985	1825	600	520	125	100	5-80	≤0.2

Mechanical seal options:

CLARE choose different mechanical seals for different production processes and media, reasonable mechanical seal selection will directly affect the operation of equipment quality

CLARE currently use the seal types are: packing, the skeleton seal, mechanical seal, Normally,used for mechanical seals more, mechanical seal divide into the cold material (built-in), external water-cooling mechanical seal, cartridge mechanical seal, Single end, double end mechanical seal, before the selection, professional application engineers will be there for your material properties, process conditions, select the appropriate drive letters.

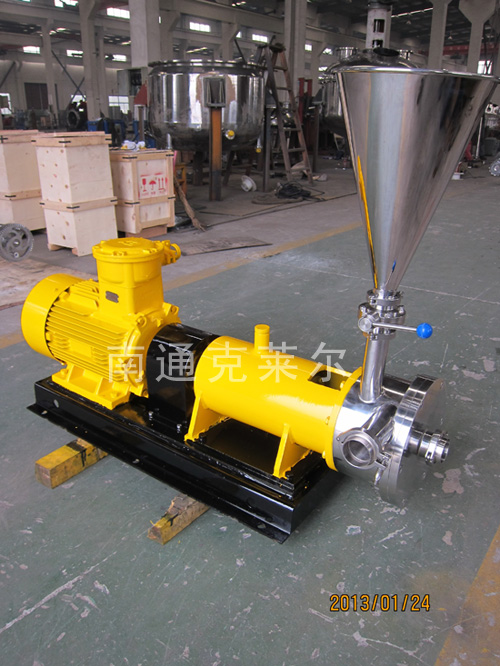

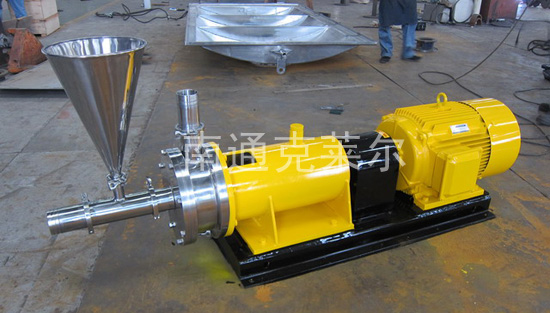

Equipped with in-line high dispersing emulsification machine of suction feeding system, emulsion pump, high shear emulsifying pump) (powder - liquid continuous mixing dispersion system)

The typical process flow diagram 1

The typical process flow diagram 2

	Structure picture
