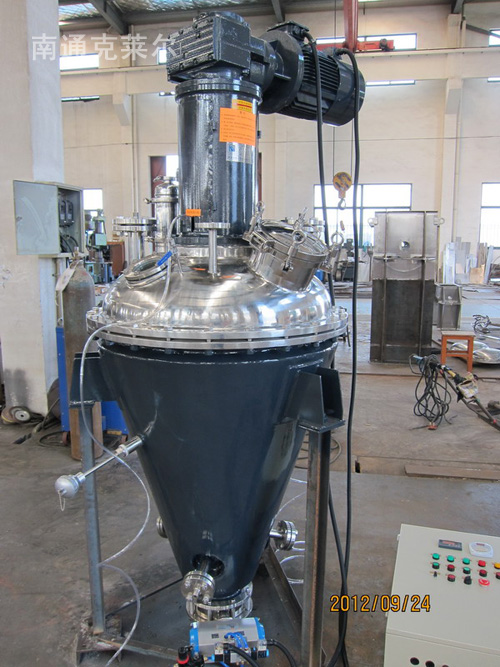

Product Name: vertical tapered mixer

Pro files

main functions
◆Vertical tapered mixer widely used in industrial production of various mixing,drying process.the machine has ternary hybrid effects,make the material have better mixing effect.

features
◆Bottom sprag,ejection of compact rapid,thorough,no retentate
◆special design,equipment is in accordance with GMP
◆Mixed gently,won’t exacerbate sensitive material mixture

sketch map of mixed process　　　　　　　　


Firstly, mixed screw elevate the material throgh rotation		secondly ,mixed screw make circular motion around awl canister	Finally,material is trown down from screw,moved to opposite of rabbit,circulate like this,finish mix.

alternative options
1.Sealing device:standard packing seal,mechanical seal,arbitrary select
2.Bleeder valve:ball valve,butterfly valve(manual operated,motor-operated,air operated) arbitrary select
3.Barrel can be designed as a clip ,cooling water or heating oil ,water inside of interlayer can meet various process demands
4.It can be designed to vacuum type operative mode with pressure
5.can provide hydrojet device

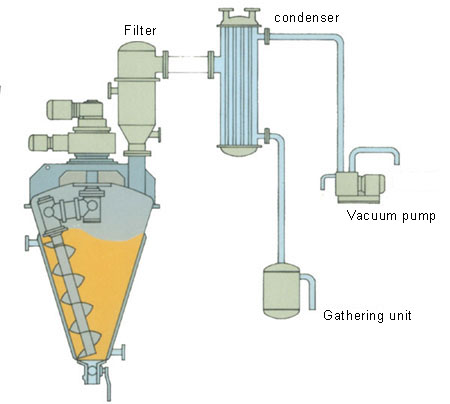

Craft sketch map of vacuum drying system

vacuum type with pressure and clip

technical data

A series of vertical mixers(normal temperature,ordinary pressure,flat cover)

model	whole volume		Screw power	cantilever power	center distance of support	Support height	bore diameter of support	overall dimension
model	m3	ft3	Screw power	cantilever power	center distance of support	Support height	bore diameter of support	overall dimension
A-3	0.2	7	1.5		800	725	24	900x1900
A-6	0.5	18	3		1060	1125	30	1190x2500
A-10	1	35	4		1335	1405	30	1440x2780
A-24	2	71	5.5		1680	1920	30	1850x3500
A-32	2.5	88	5.5		1810	2130	30	1980x3800
A-40	3	106	7.5		1900	2280	30	2080x4000
A-50	4	141	7.5		2110	2630	30	2300x4400
A-64	5	177	11	1.5	2270	2805	30	2500x4800
A-80	6	212	11	1.5	2390	3045	30	2570x5000
A-120	8	283	15	1.5	2650	3350	36	2850x5200
A-180	10	353	18.5	2.2	2880	3590	36	3160x5400
A-240	12	424	18.5	2.2	3060	3800	36	3370x5800
A-300	15	530	22	2.2	3290	4005	36	3550x6000

A series of vertical mixers

v series of vertical mixers(seal with pressure)

model	whole volume		Screw power	cantilever power	center distance of support	Support height	bore diameter of support	overall dimension
model	m3	ft3	Screw power	cantilever power	center distance of support	Support height	bore diameter of support	overall dimension
V-1	0.1	3.5	1.1		545	470	24	650x1800
V-3.5	0.3	11	2.2		795	770	24	900x2000
V-6	0.5	18	3		915	885	30	1160x2900
V-10	1	35	4		1215	1205	30	1440x3400
V-32	2.3	82	5.5		1515	1635	30	1800x4000
V-48	3.3	117	7.5		1815	2125	30	2000x4300
V-64	4.5	159	11	1.5	2015	2370	30	2250x4650
V-96	6	212	11	1.5	2215	2700	30	2450x5100
V-120	7.8	276	15	1.5	2415	2935	36	2700x5500
V-200	10	353	18.5	2.2	2620	3185	36	2900X5900
V-250	12.3	434	18.5	2.2	2840	3420	36	3150x6350
V-300	15	530	22	2.2	3045	3745	36	3450x6800

V series of vertical mixers
