Nantong Clare Mixing Equipment Co.,Ltd

Product Name: DE-200 (two-way suction type) scattered high shear emulsifying

Pro files

CLARE gap-type high-shear dispersing emulsifier in the structure have also gone through several updates, from the claw blade structure to structure, from one-way suction to two-way.

CLARE200 series claw structure, two-way suction-type high-shear dispersing emulsifier more inclined to apply to suspended solids or liquid material is slightly higher viscosity of the circumstances under which material is better, the specific basis of the actual process conditions CLARE application engineers’ll solve your problems.

	●Manual hydraulic pressure go up and down,removable hanging-up ●Removable hanging-up is made of hydrocylinder and hanging-up. ●The bottom equip four roller with polyamine,could move front-back,right-left freely. ●It will not happen severe rock while working. ●Cost efficient,easy to use ,good value.
Manual hydraulic pressure go up and down
	●Motor driven go down and up hanging-up,good balance ●Equip contol cabinet for up and down,main engine,namely open and namely stop ●Equiped go and up overtravel-limit switch,all by control cabinet. ●The bottom equip four roller with polyamine,could move front-back,right-left freely ●It can change to manual hydraulic pressure go up and down or air dirve go up and down.
removable hanging-up

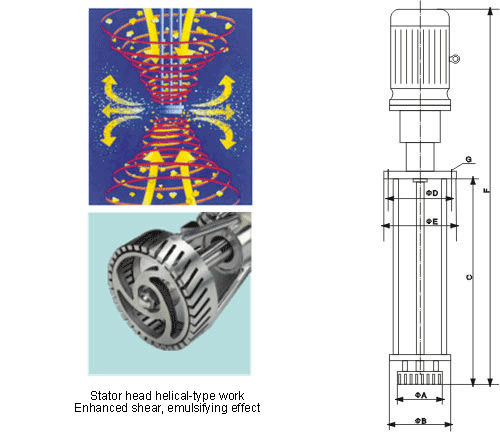

Model	Power factor (KW)	Speed (rpm)	A	B	C	D	E	F	G	Handle ability (L)
DE-201	1.5	2900	105	105	355		105	705		5～50
DE-202	2.2	2900	116	160	650	215	265	1155	8xφ16	50～100
DE-205	4	2900	141	195	725	255	290	1300	8xφ16	100～300
DE-210	7.5	2900	156	235	833	280	330	1520	8xφ16	200～800
DE-211	11	2918	184	235	833	280	330	1655	8xφ16	300～1000
DE-225	18.5	2900	200	280	1200	360	415	2065	8xφ20	500～1500
DE-230	22	1440	240	300	1200	360	415	2130	8xφ20	800～2000
DE-235	30	1440	260	320	1355	400	450	2525	8xφ20	1000～3000
DE-250	37	1440	280	340	1395	400	450	2585	8xφ20	1500～5000
DE-260	55	1447	330	380	1638	500	550	2995	8xφ20	2000～8000
DE-275	75	1440	350	400	1648	500	550	3050	12xφ20	3000～10000

Note：
Upper thruput in the table is tested by using water as medium
If there are high temperature,high pressure and explosive situations,must provide revalant accurate parameters so as to customize.
