Product Name: Online continuous powder, liquid/solid - liquid mixed emulsifying

Pro files

CLARE latest design PLM powder - liquid/solid - liquid dispersion mixing pump (on-line continuous)

The working principle of

PLM (Powder/Liquid Mixing) Powder - Liquid dispersion Mixing pump is the use of specially designed high-speed vacuum produced by the rotation of the rotor, and the Powder evenly into the rapid flow of Liquid, cavity sheared by instantaneous mixture evenly dispersed. Because the liquid and powder in mixed before is out of touch with each other, only moments before in the mixed powder by dispersion of import flow, so the powder - abnormal fluid mixing evenly, won't produce cluster, skinning, form a high quality product, the machine can be continuous production.

Process shown in figure
①Automatic suction

② Artificial pour into the hopper

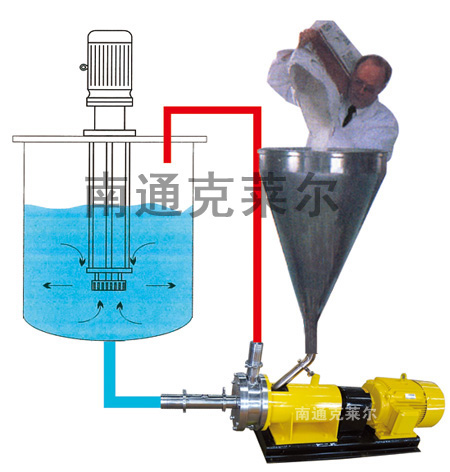

The typical process flow diagram 1

The typical process flow diagram 2

	结构原理图

PLM online continuous mixed powder, liquid, solid and liquid pump data sheet

model	power (KW)	speed （RPM）	Liquid import	Powder imported	Mixture export	Self-priming powder suction	The liquid flow (M3/H)	Three dimensional size (MM)
DE400-1-4	4	2900	DN51	DN38	DN51	-0.06MPA	2-3	760310400
DE400-1-7.5	7.5	2900	DN51	DN38	DN51	-0.08MPA	5-6	800400420
DE400-1-11	11	2900	DN51	DN38	DN51	-0.09MPA	7-8	920420420
DE400-1-15	15	2900	DN63.5	DN51	DN51	-0.09MPA	8-10	1000450450
DE400-1-18.5	18.5	2900	DN63.5	DN51	DN63.5	-0.09MPA	10-12	1400460480
DE400-1-22	22	2900	DN63.5	DN51	DN63.5	-0.09MPA	15-20	1500500480
DE400-1-30	30	2900	DN63.5	DN51	DN63.5	-0.09MPA	20-25	1700630550
DE400-1-37	37	2900	DN76	DN56	DN63.5	-0.09MPA	25-30	1800630600
DE400-1-45	45	2900	DN76	DN56	DN76	-0.09MPA	30-35	1950650630
DE400-1-55	55	2900	DN89	DN56	DN76	-0.09MPA	40-50	2000680650
